What size pallet rack do I need?

Use 42-inch-deep uprights as the starting point for standard 48-inch-deep pallets. Common beam lengths are 96, 108, 144 inches; 96 inches commonly holds two 40-inch-wide pallets and 144 inches three. Height depends on clear height and forklift lift height. Measure your actual pallets and load overhang before ordering.

What aisle width do I need?

Your lift truck sets the aisle width: counterbalance typically needs about 12–13 feet, reach about 8–10 feet, and very-narrow-aisle equipment about 5–6 feet. Confirm the exact width from your truck specifications; it directly affects how many pallet positions fit.

How much does pallet rack cost?

Price depends on pallet positions, rack height, beam capacity, decking, freight and installation. Send your pallet size, heaviest load per level, clear height and building size for a free CAD layout and itemized quote. We sell new material only, and the quote separates each part of the scope so you can compare options.

How are rack load capacities determined?

There is no single capacity that applies to every rack. Beam capacity is rated per pair, per level; frame capacity depends on frame height and beam spacing. We size beams and frames from your heaviest pallet, and the finished configuration's capacities go on load plaques. For cantilever, we also check individual arm and total column loads.

What type of pallet rack do I need?

Selective teardrop rack is the starting point for mixed SKUs because every pallet is directly accessible. Selective is the default for mixed SKUs; pushback stores two to six deep LIFO by SKU; pallet flow serves FIFO or dated stock; drive-in serves bulk inventory with few SKUs; cantilever supports long loads; carton flow serves case picking. We compare the appropriate systems in your free layout.

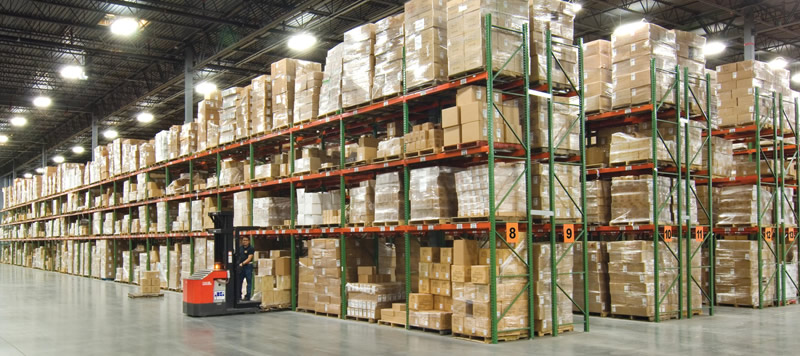

Industrial pallet racking warehouse in Kansas City Missouri

Serving the Kansas City Metro Area

Industrial Pallet Racks & Warehouse Racking Solutions in Kansas City, MO

Name: Kansas City Pallet Rack
Address: 4050 Pennsylvania Ave. Ste 115 #397, Kansas City, MO, 64111, US
Telephone: (913) 453-3942
Price range: $$

Need more storage out of your Kansas City warehouse? We design and supply pallet racks, warehouse racking, and complete pallet rack systems that turn unused vertical space into organized, accessible inventory rows. From selective pallet racks for fast-moving SKUs to high-density warehouse pallet racks for bulk storage, we match your operation to the right industrial racking configuration.

Our process starts with a warehouse needs analysis focused on your pallet sizes, clear heights, and forklift turning radius. Then we recommend industrial pallet racks and industrial warehouse racking that keep your team safe and your aisles productive, with managed installation coordinated across the Kansas City metro.

Call (913) 453-3942

Pallet Rack Systems for Every Warehouse Need

Compare direct pallet access, reserve storage depth, gravity-fed picking, and long-load storage for your operation.

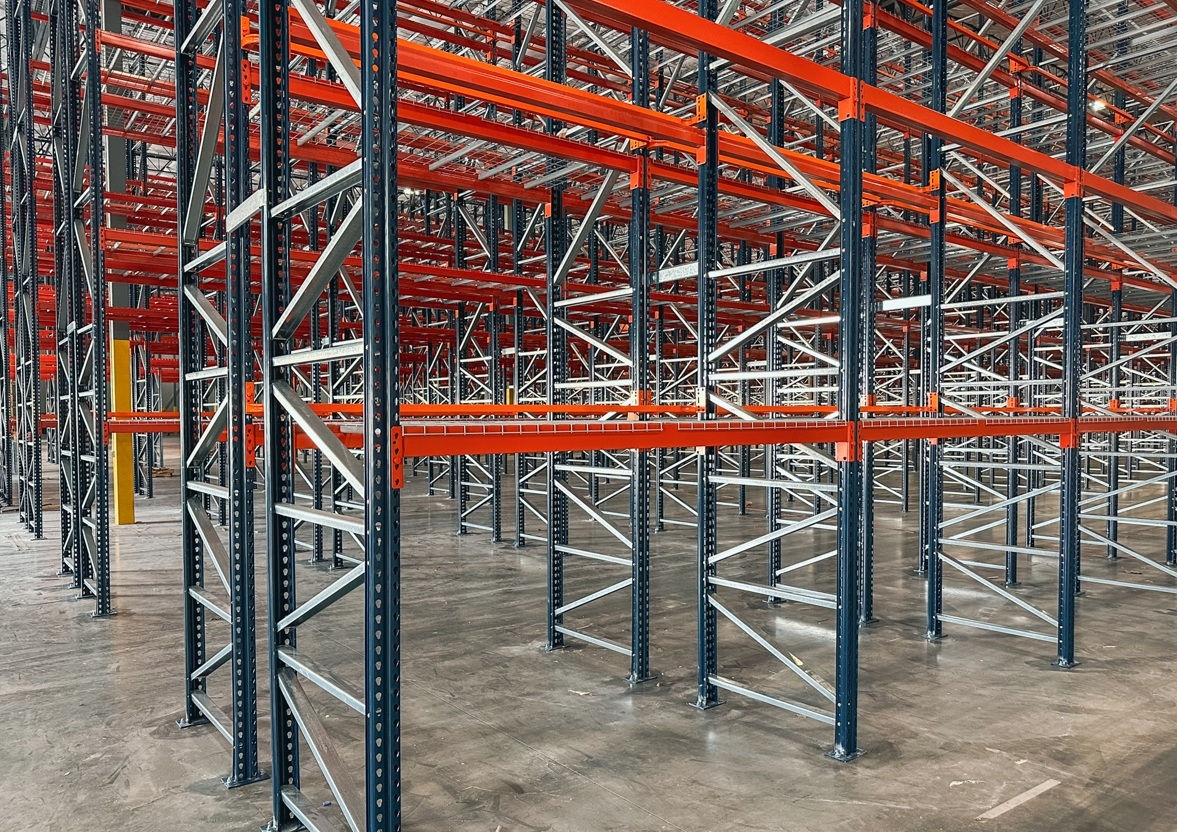

Pallet Rack

Every pallet reachable, every time. The baseline we size everything else against.

View Details

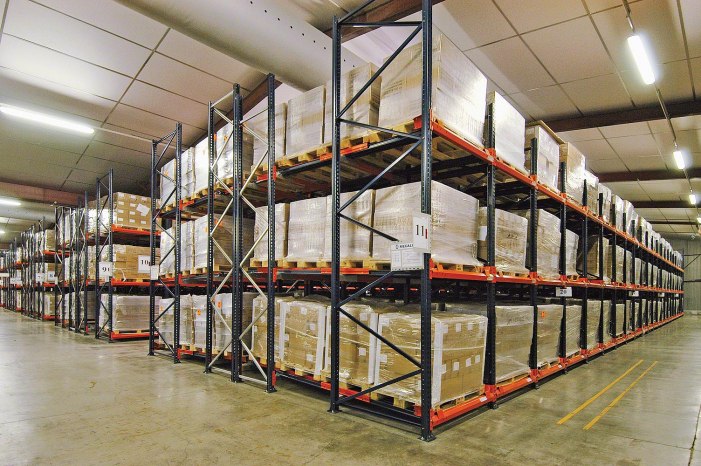

Pushback Rack

Two to six pallets deep from one aisle, without giving up much reach.

View Details

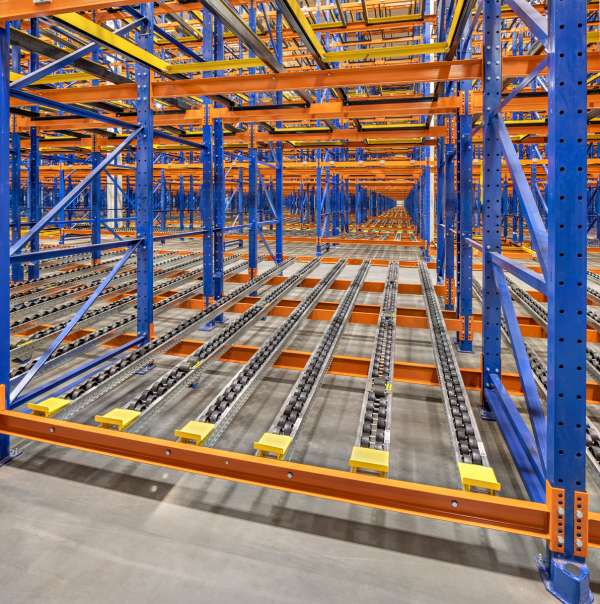

Pallet Flow Rack

Load one side, pick the other, and let gravity enforce first in, first out.

View Details

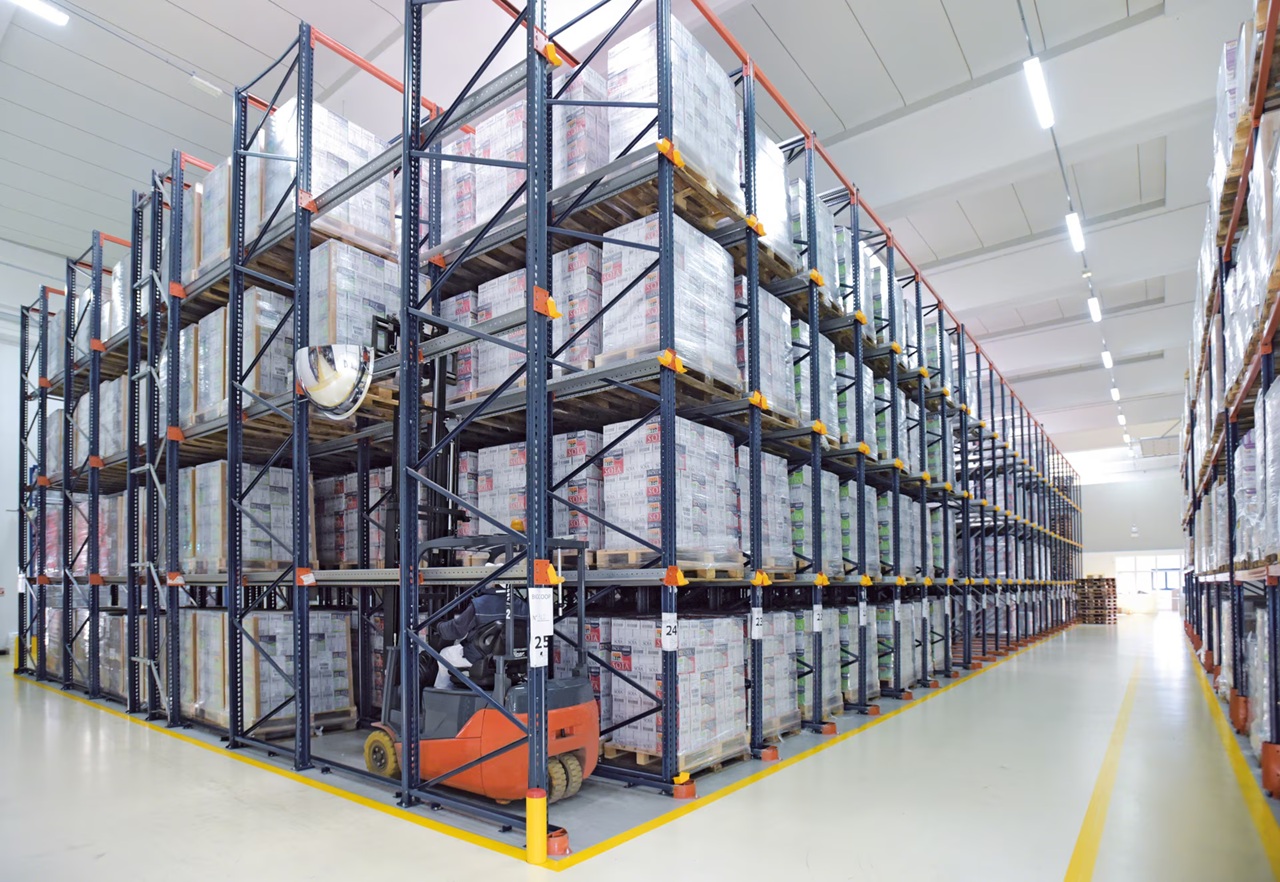

Drive-In Rack

Fewer aisles. The forklift enters the structure, and the floor holds more pallets per square foot than single-deep rows.

View Details

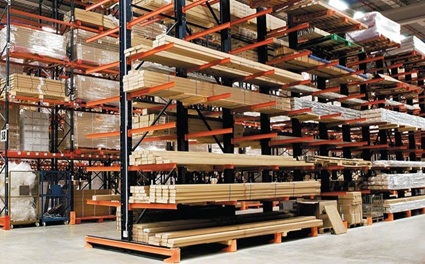

Cantilever Rack

Arms with nothing in front of them, built for lumber, pipe, and anything a pallet can't hold.

View Details

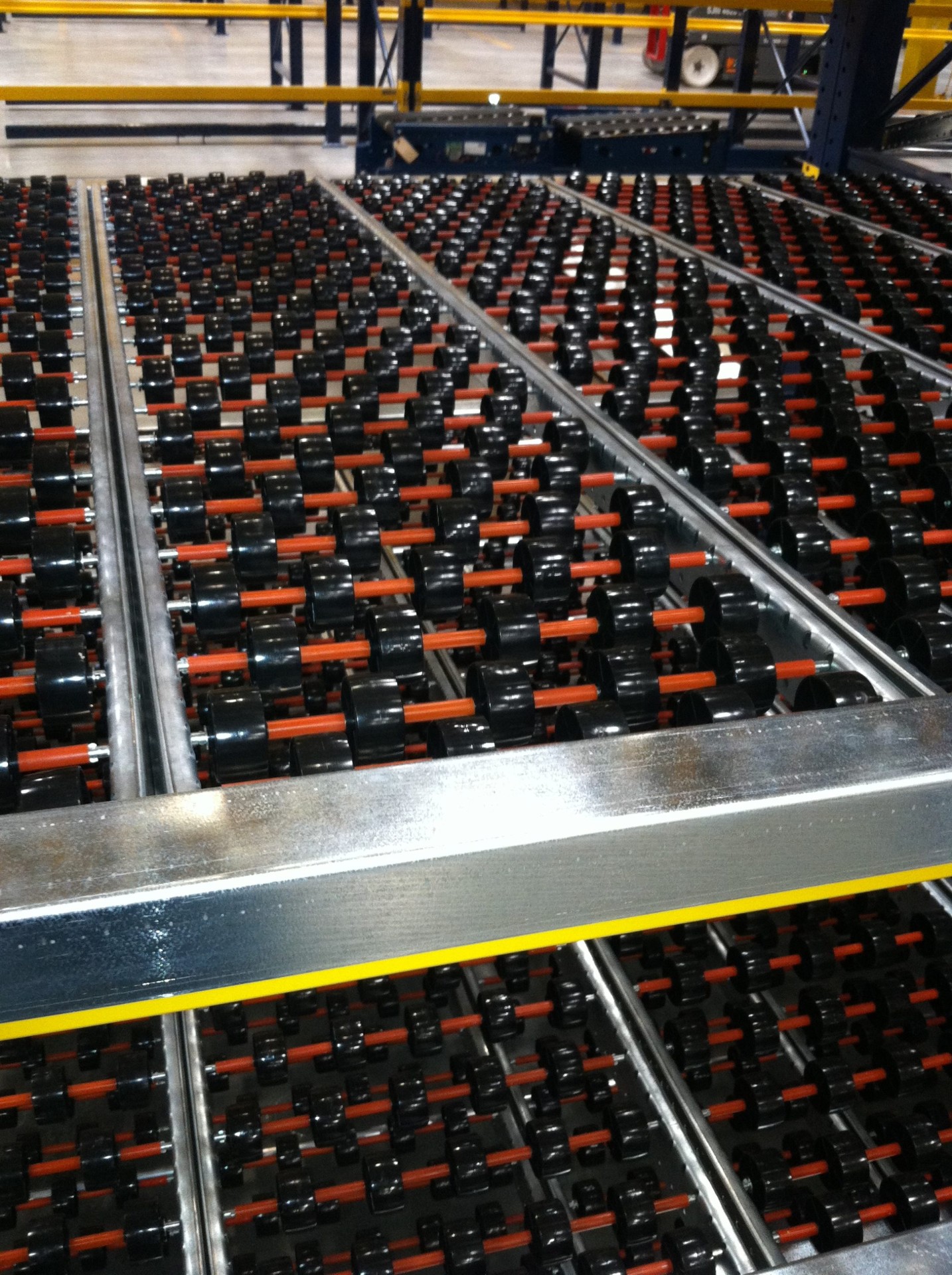

Carton Flow Rack

Cases advance to the picker instead of the picker hunting for cases.

View Details

Compare All Rack Systems

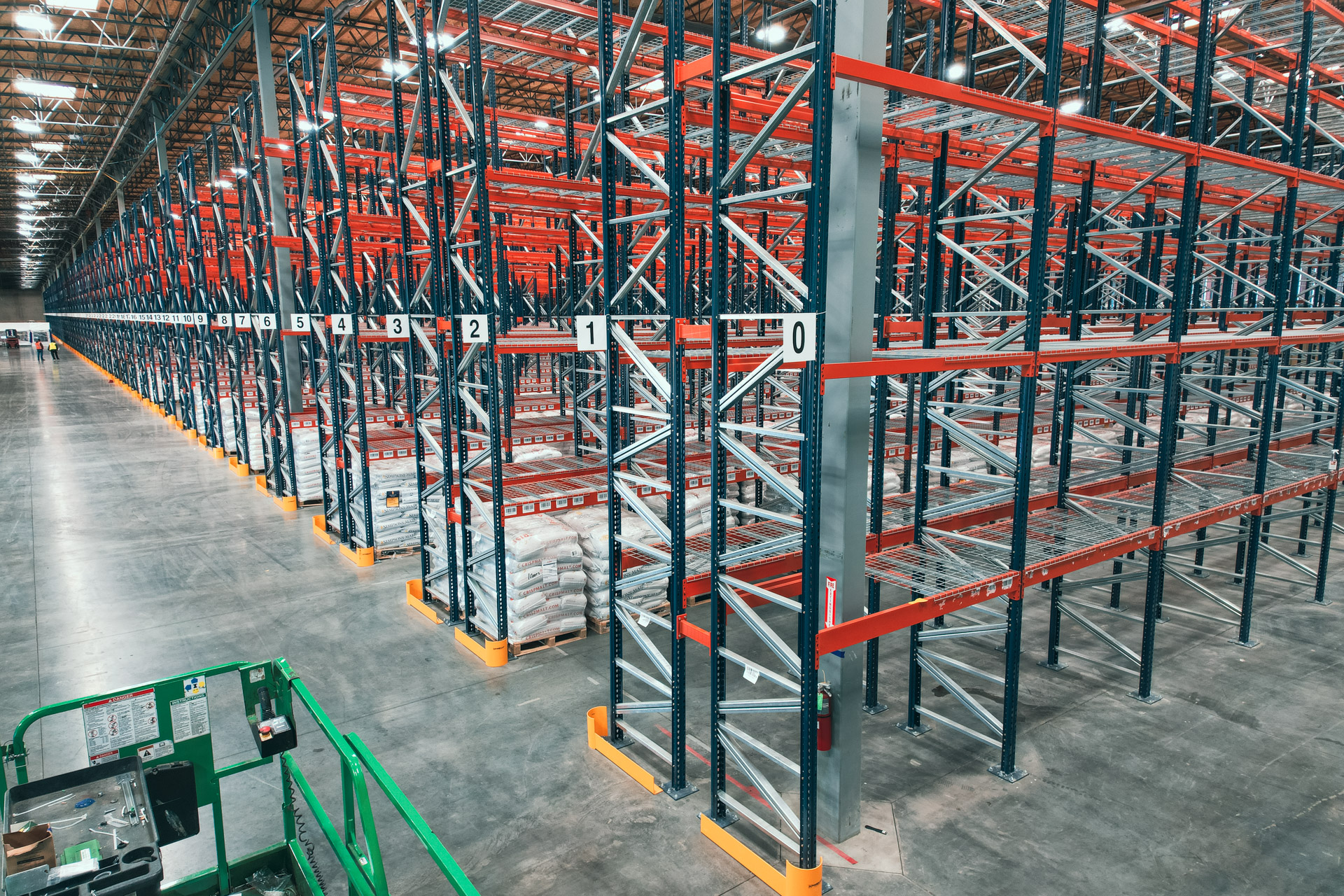

Warehouse pallet rack installation in Kansas City

Complete Warehouse Storage Solutions

From the first phone call through installation and parts years later, we handle the whole pallet racking project for Kansas City operations.

Free Warehouse Design

Complimentary CAD layouts and a warehouse needs analysis, so you can see your pallet position count before spending anything.

Space Optimization

We match beam elevations, aisle widths, and rack type to your pallets and lift so the building holds more without growing.

Fast Delivery

The 48-hour quick ship program covers standard pallet rack components. Timing is confirmed on your quote.

Experienced Installation

We anchor, plumb, and level every frame, then label rows and post capacity tags before handover.

Rack Protection

Column protectors, end-of-aisle guards, and guard rail where traffic patterns call for them, priced as separate line items.

Support After the Install

Expansions, reconfigurations, relocations, and replacement parts handled by the same team that drew your layout.

Warehouse Relocation Services in Kansas City

Moving to a new building? Plan rack teardown, labeling, transport coordination, and reinstallation around the destination layout, with new rack added where needed.

Plan Your Warehouse Move

Recent Pallet Rack Projects

A look at warehouse racking systems we have designed, delivered, and installed.

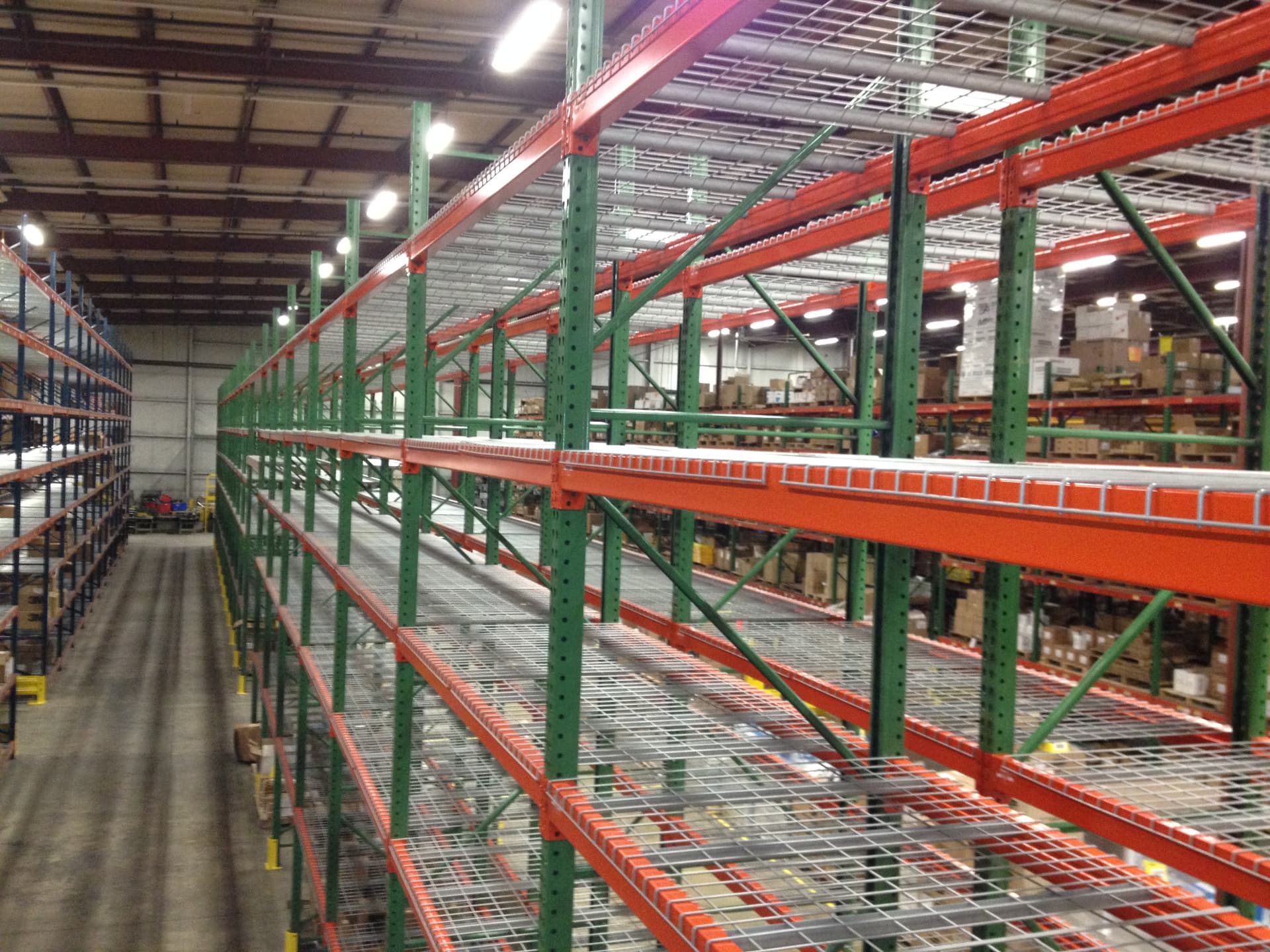

Rows of selective pallet racking with green uprights and orange beams down a warehouse aisle

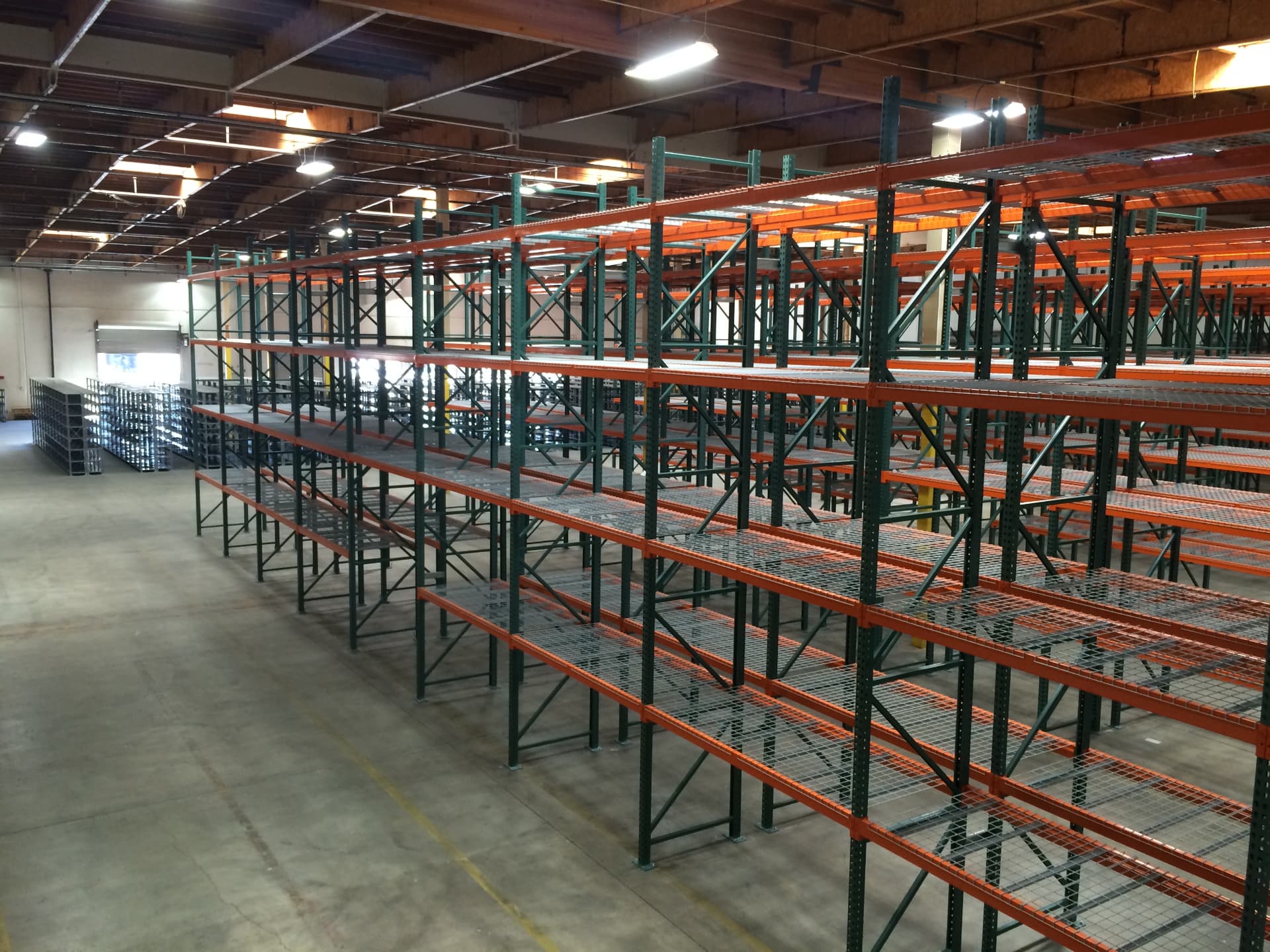

Aisles of pallet racking with wire decking inside a large distribution center

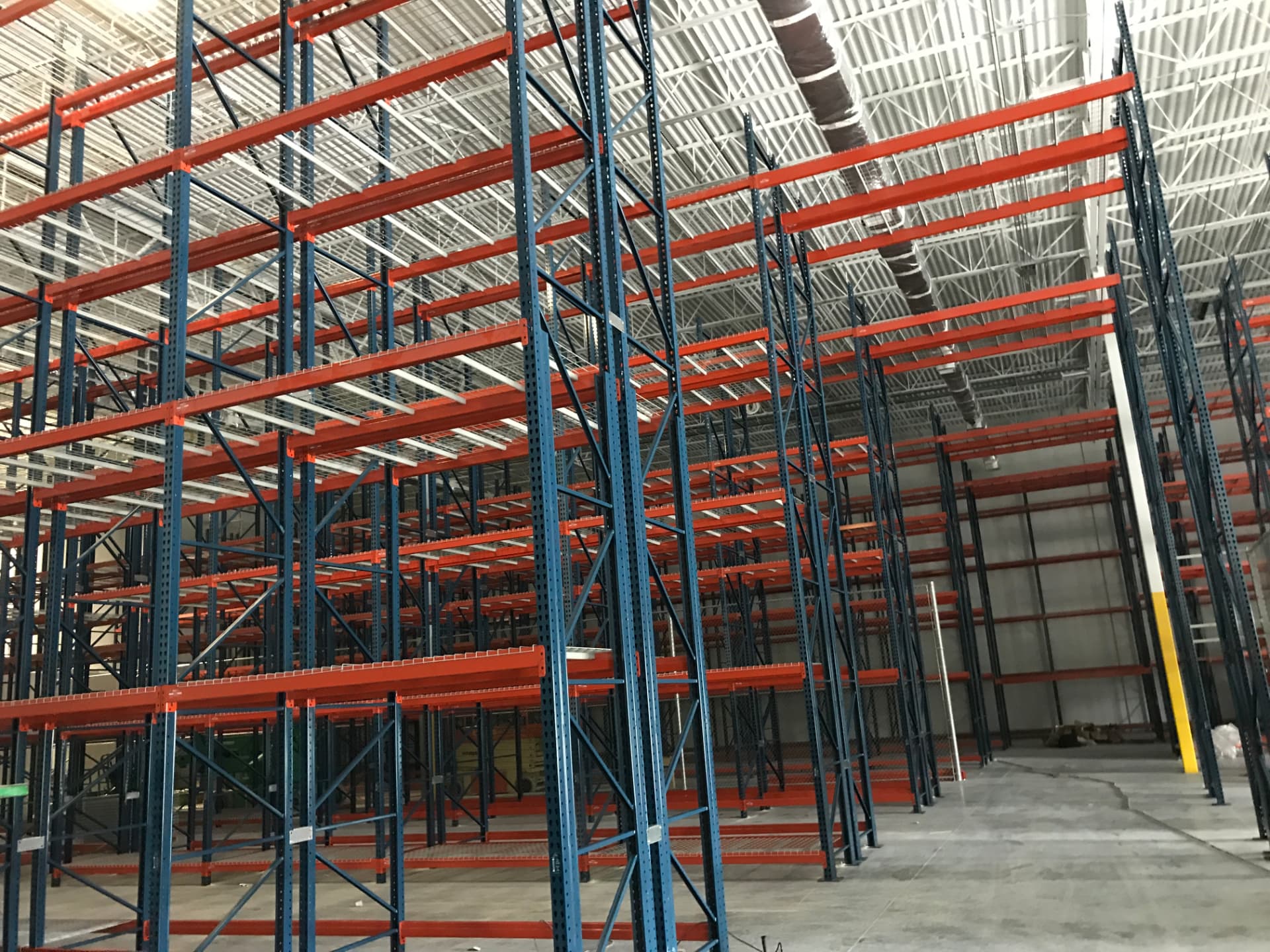

High-density warehouse pallet racking with tall blue uprights and orange crossbeams

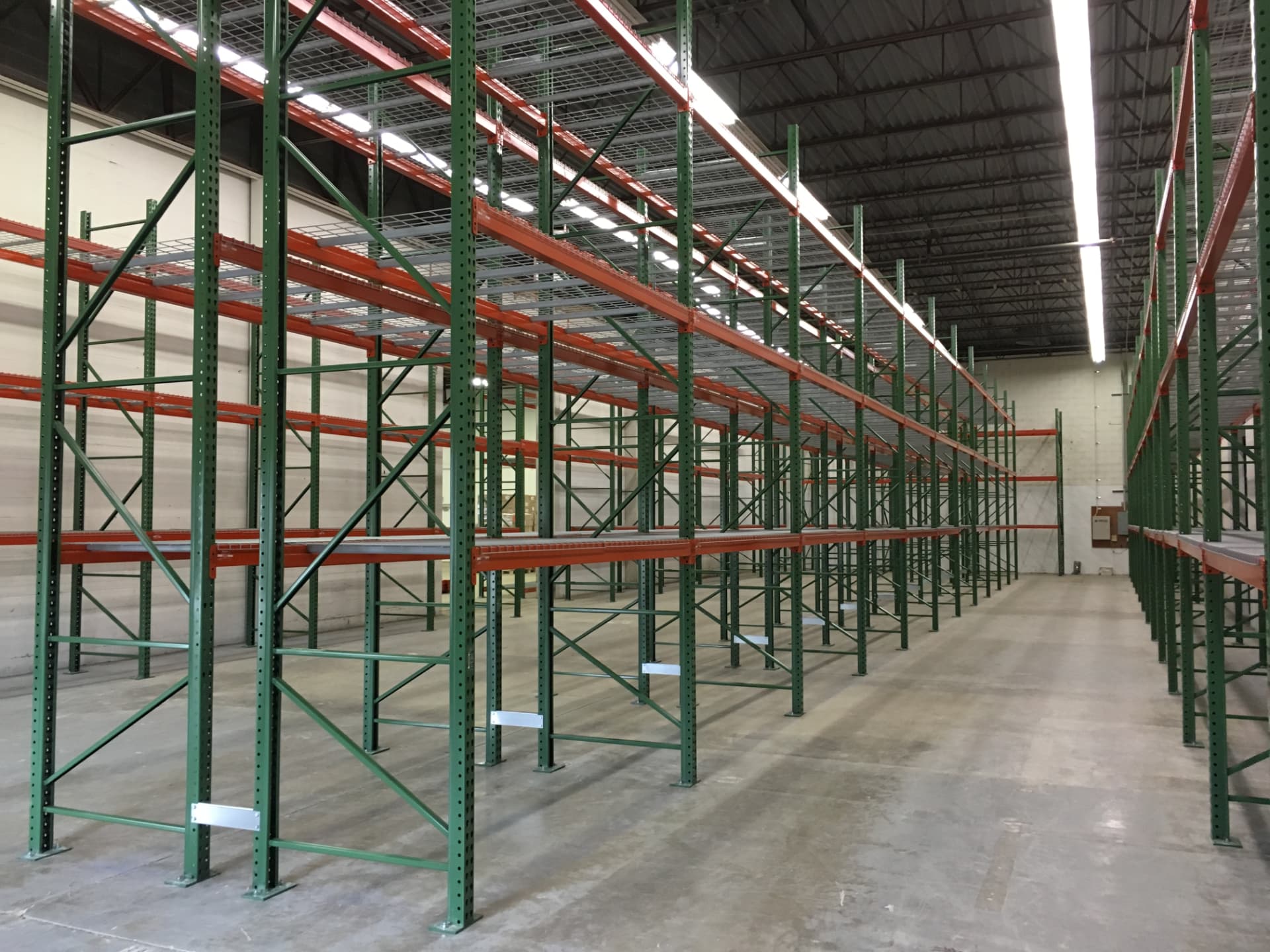

Long rows of green and orange pallet racking installed on a concrete warehouse floor

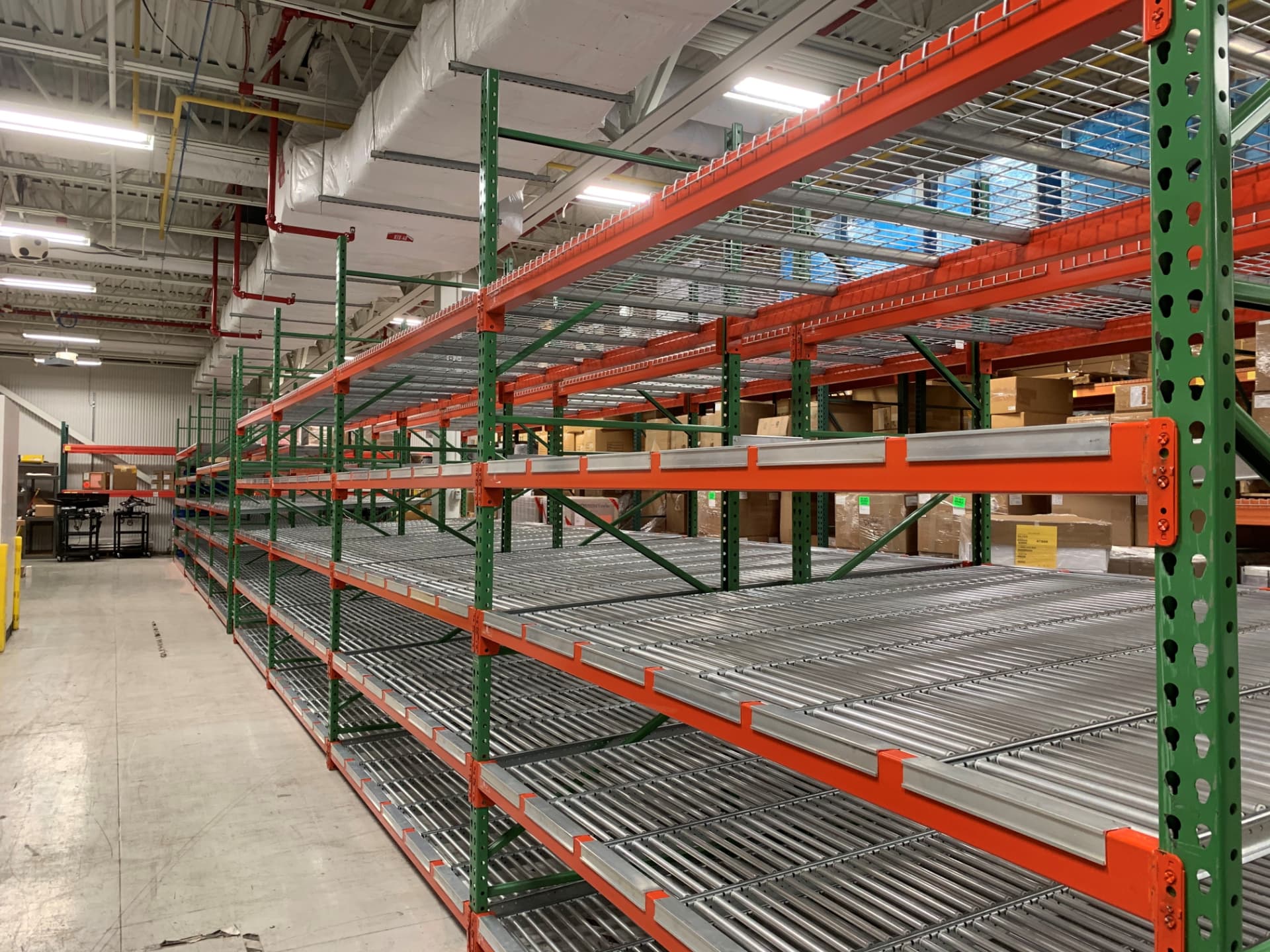

Carton flow racking with roller tracks and orange beams installed in a distribution warehouse

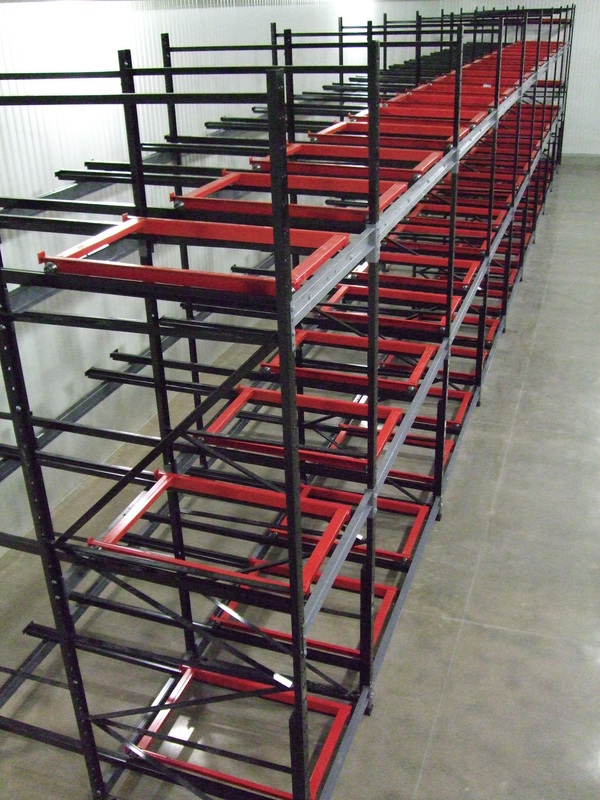

Push back pallet rack system with carts on inclined rails for high-density storage

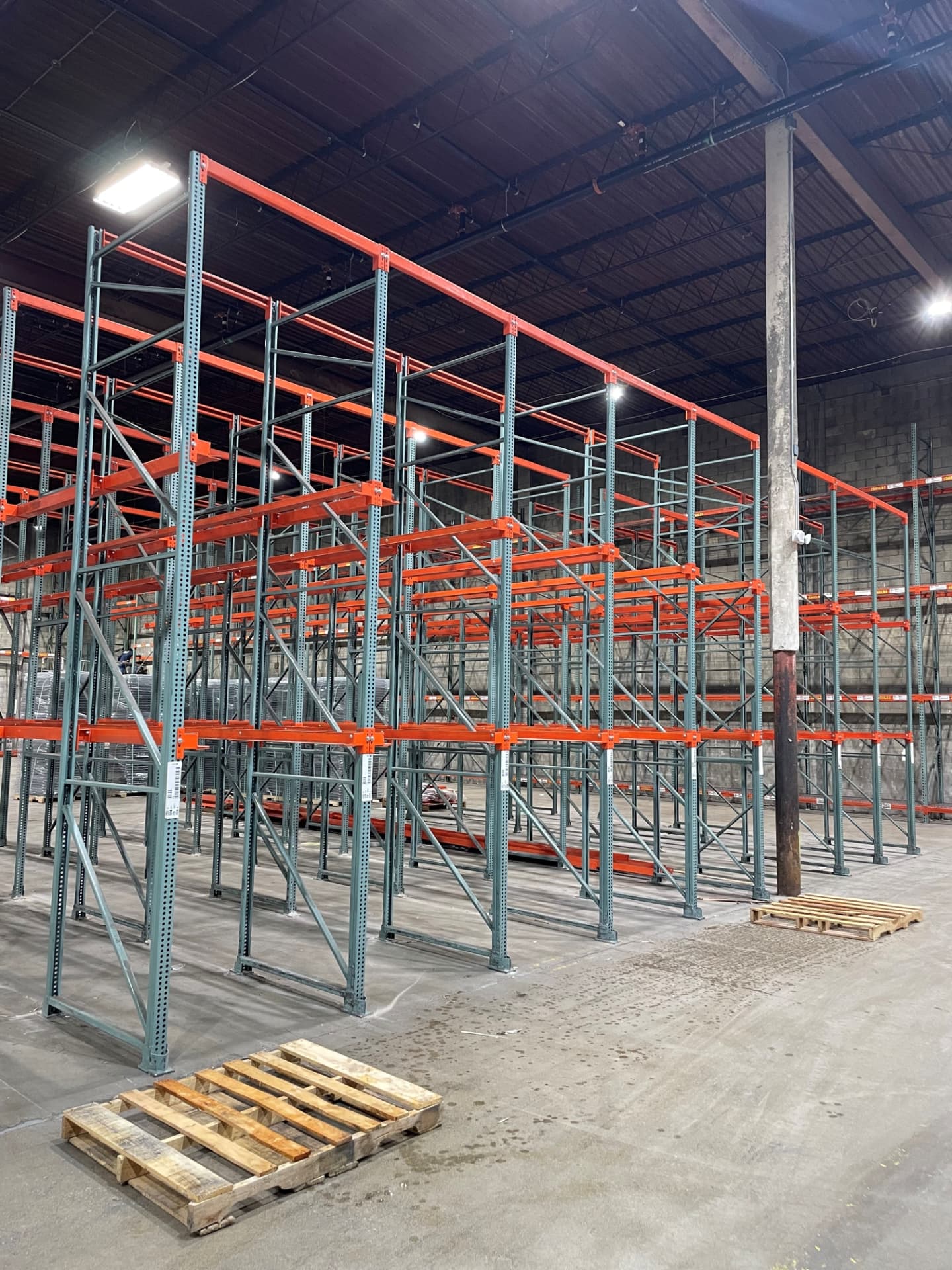

Drive-in pallet rack system with tall uprights and orange rails in an open warehouse

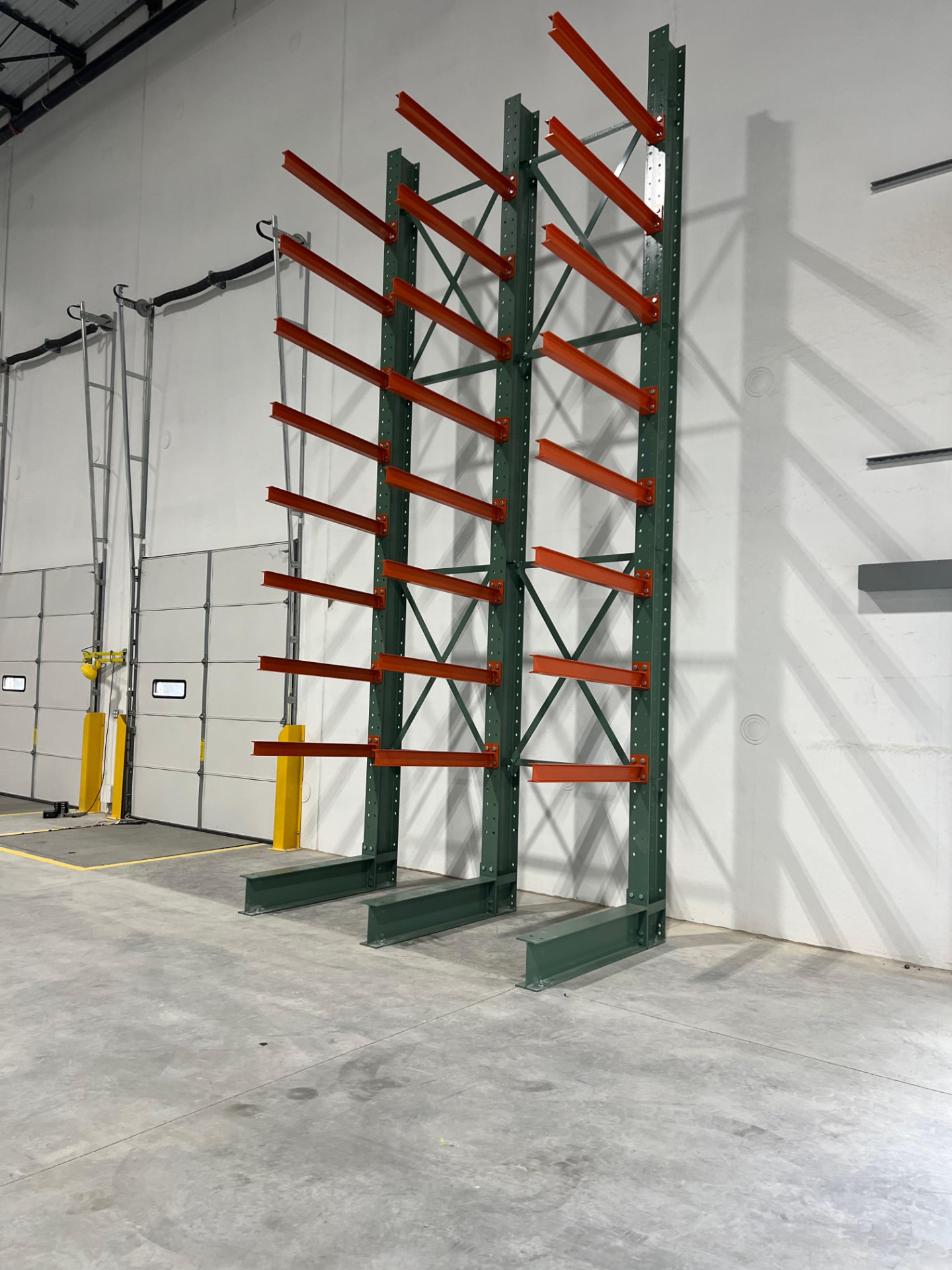

Cantilever rack with green columns and orange arms for long material storage

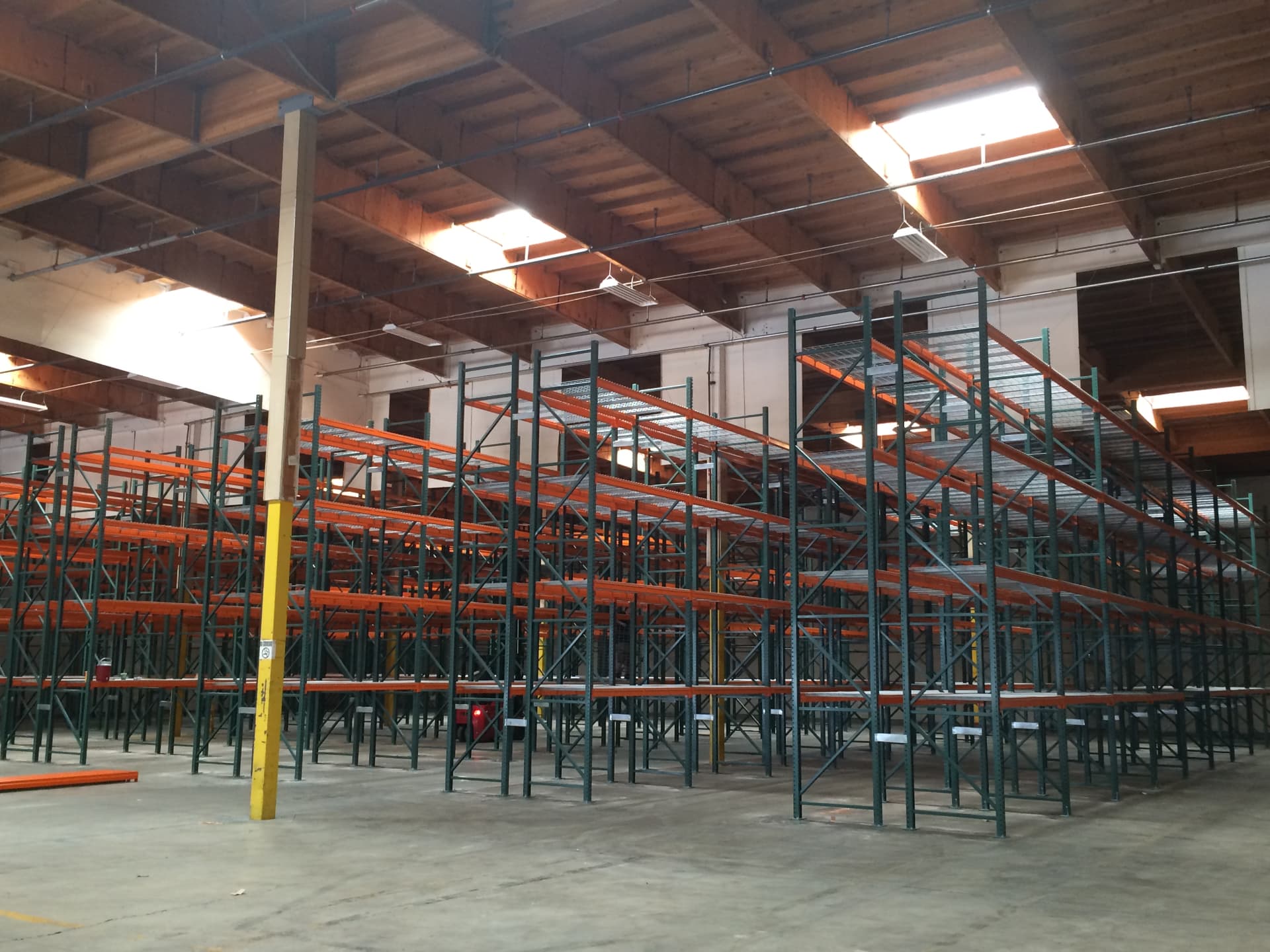

Warehouse racking system installed beneath skylights and ready for inventory

View More Projects

Planning Your Project

Common Warehouse Design Questions

Before designing your pallet rack system, there are several key factors to consider. Our warehouse design specialists will help you answer these questions during your free consultation.

Free Design Consultation Includes:

Warehouse needs analysis
Detailed CAD layout drawings
Pallet rack system recommendations
Complete project quote

Schedule Free Consultation

Ready to Optimize Your Warehouse?

Get a free quote and complimentary warehouse design consultation from our experienced team.

(913) 453-3942

Serving the Kansas City Metro Area

We provide industrial pallet racks, warehouse racking solutions, and free warehouse design consultations throughout the greater Kansas City area.

Kansas City Overland Park Olathe Independence Lee's Summit Lenexa Shawnee Blue Springs Leavenworth Liberty

View All Service Areas

Pallet Rack Questions We Hear Most

Straight answers about industrial pallet racks, warehouse racking systems, and how projects run across the Kansas City metro.

Visit Our Kansas City Location

Located in Kansas City, we serve the entire KC metro area with industrial pallet racks and warehouse storage solutions.

Kansas City Pallet Rack

Address

4050 Pennsylvania Ave.
Ste 115 #397
Kansas City, MO 64111

Phone

(913) 453-3942

Business Hours

Monday - Friday: 8:00 AM - 6:00 PM
Saturday: Closed
Sunday: Closed

Start Your Warehouse Project Today

Request a free quote and warehouse needs analysis. Send us your pallet sizes and clear height and we will send back a layout.
